Important

Enable SaintsEditor before using

Draw text, separator, spaces for field/property/button/layout/class/struct on above / below with rich text & dynamic text support.

Parameters:

• string title=null display a title. null for no title, only separator.

  If it starts with $, the leading $ will be removed and isCallback will be set to true. Use \$ to escape the starting $.

• EColor color=EColor.Gray color for the title and the separator

• EAlign eAlign=EAlign.Start how the title is positioned, options are:

  • EAlign.Start
  • EAlign.Center
  • EAlign.End

• bool isCallback=false when true, use title as a callback to get a dynamic title

• int space=0 leave some space above or below the separator, like what Space does.

• bool below=false when true, draw the separator below the field.

[Separator("Separator", EAlign.Center)]
public string separator;

[Separator("Left", EAlign.Start)] public string left;

[Separator("
quot; + nameof(right), EAlign.End)]
public string right;

[Separator(20)]
[Separator("Space 20")]
public string[] arr;

[Separator("End", below: true)] public string end;

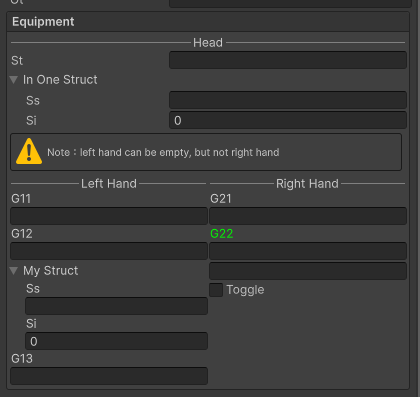

Using it with Layout, you can create some fancy appearance:

[LayoutStart("Equipment", ELayout.TitleBox)]

[LayoutStart("./Head")]
[Separator("Head", EAlign.Center)]
public string st;
[LayoutCloseHere]
public MyStruct inOneStruct;

[LayoutStart("./Upper Body")]

[InfoBox("Note：left hand can be empty, but not right hand", EMessageType.Warning)]

[LayoutStart("./Horizontal", ELayout.Horizontal)]

[LayoutStart("./Left Hand")]
[Separator("Left Hand", EAlign.Center)]
public string g11;
public string g12;
public MyStruct myStruct;
public string g13;

[LayoutStart("../Right Hand")]
[Separator("Right Hand", EAlign.Center)]
public string g21;
[LabelText("<color=lime><label/>")]
public string g22;
[LabelText("
quot; + nameof(g23))]
public string g23;

public bool toggle;

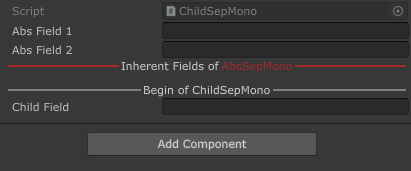

Use it on a class to get a class default seperator. This is useful for inherent.

// AbsSepMono.cs
[BelowSeparator("Inherent Fields of <color=brown><container.Type/>", EColor.Brown, EAlign.Center)]
[BelowSeparator(10)]
public abstract class AbsSepMono : SaintsMonoBehaviour
{
    public string absField1;
    public string absField2;
}

// ChildSepMono.cs
[Separator("Begin of <container.Type/>", EAlign.Center)]
public class ChildSepMono : AbsSepMono
{
    public string childField;
}
