Overview
Important
Enable SaintsEditor before using

Layout system allows you to group severral target (field, property, button etc) together. It also allows you to box it with/without a title box or foldout box.

This will generate:

  1. Temp files under Library/SaintsFieldTemp
  2. Assets/Editor Default Resources/SaintsField/Temp.SaintsFieldSourceParser.additionalfile (You should ignore this in your version control)

You can change configs under Assets/Editor Default Resources/SaintsField/Config.SaintsFieldSourceParser.additionalfile

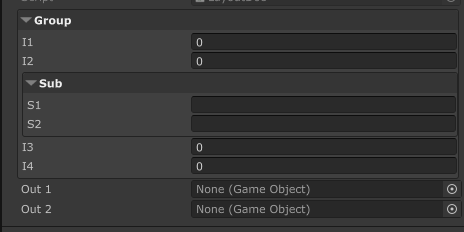

The field can be groupd as:

using SaintsField.Playa; [LayoutStart("Group", ELayout.FoldoutBox)] public int i1; public int i2; [LayoutStart("./Sub", ELayout.FoldoutBox)] public string s1; public string s2; [LayoutEnd(".")] public int i3; public int i4; [LayoutEnd] public GameObjct out1; public GameObjct out2;

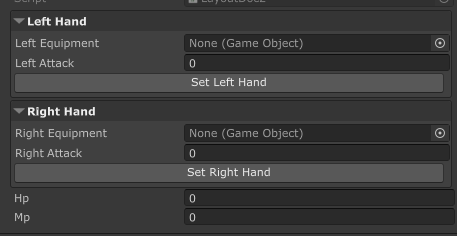

You can also mix it with Button & ShowInInspector

[LayoutStart("Left Hand", ELayout.FoldoutBox)] public GameObject leftEquipment; public int leftAttack; [Button] public void SetLeftHand() {} [LayoutStart("Right Hand", ELayout.FoldoutBox)] public GameObject rightEquipment; public int rightAttack; [Button] public void SetRightHand() {} [LayoutEnd] public int hp; public int mp;

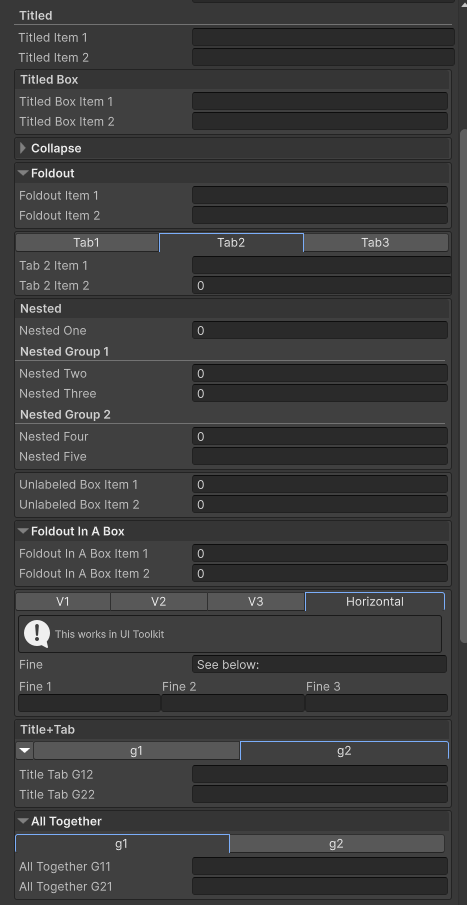

All together showcase:
